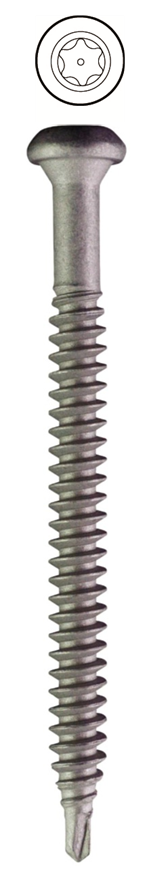

| Type | R-fix 6.3*L |
| Material | Hardened Carbon Steel |
| Thread Dia. | 6,3mm |
| Length(mm) | 32, 50, 65, 75, 90, 100, 120, 140, 160, 180, 200, 230, 250 |
| Head | T30/Pan Head, Torx T30 Driven System |
| Drill Bit | Rauger Drill Bit |
| Drilling Capacity | 2*1.25mm |
| Corrosion Resistance | 15 Cyles Kesternich (GB 9789/DIN 50018) 1500 hrs Salt Spray Test(ASTM B117/GB/T 10125) 1500 hrs salt spray NSS resistance tested by SGS, appearance rating above 9 (ASTM 117) 15 cycle Kesternich test, no red rust (GB 9789) |
| Application | Steel Deck 0.63mm-2*1.25mm Concrete above C25 |
| Condition | RH<75%, no Chemical Corrosion |
| Using With | TP-fix /Tube，IB, IC, IS, TD /Metal Plate/Metal Strip |
| Advised Design Load | Consult Roofing System Supplier based on Substrates |
